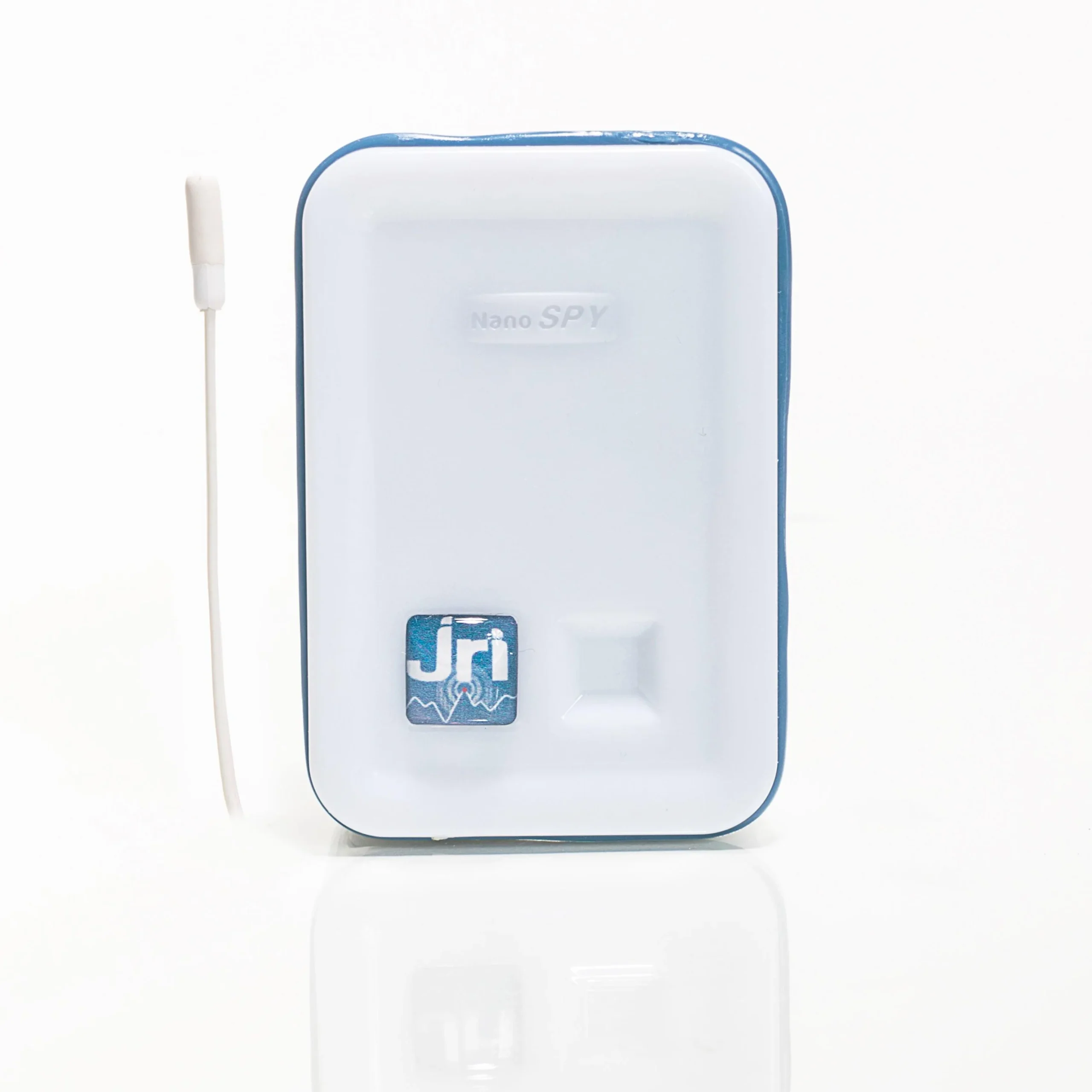

Nano SPY T2 Recorder
The Nano SPY T2 3 meter external sensor measures, records temperature and transmits its data to a nearby Nano SPY Link module via 2.4 GHz radio frequency communication. The data is automatically sent to the JRI secure Cloud for hosting, and will be managed on the JRI MySirius web application. If thresholds are exceeded, alerts are transmitted in real time via alarm SMS/Text and email. The Nano SPY will also flash red when in alarm as well at the Nano SPY Link module. Small and robust, it is designed to monitor temperature directly from inside rooms, incubators, fridges and freezers.
NOTE: To operate the device requires connection to Nano SPY LINK and My Sirius subscription.
| Interface | Status LED lights and On/Off touch sensitive button |
| Measurement range | -50°C to +105°C |
| Accuracy (Standard Model) | ±0.3°C from -20°C to +30°C and ±0.5°C out of this range |
| Communication | 2.4 GHz (802.15.4) |
| Memory | 10,000 data points |
| Sensor | External PT100 probe – Ø5x20mm |
| Operating conditions | -30°C to +70°C |
| Resolution | 0.01 |
| Measuring and transmission period | Adjustable from 5 sec to 12 hrs |
| Internal memory recording period | Adjustable from 5 sec to 24 hrs |
| Response time t90 | ~2 mn at 90% of the variation |
| Protection | IP65 |
| Case | Polycarbonate – Food contact |
| Power supply | Lithium 3.6v battery – Replacement |
| Cable length | 3 meter |
| Battery life | 2 to 4 years depending on use |
| Dimensions and weight | 63 x 42 x 25 mm / ~ 60 g |
| Mounting | Fixing eyelets & integrated magnets |
| Supplied with | Battery, blue identification ring |
| Compliance | CE, ROHS, FCC, ETS 300-328, EN 12830 |
| Standard calibration points | -18°C/ +6°C/ +22°C |
