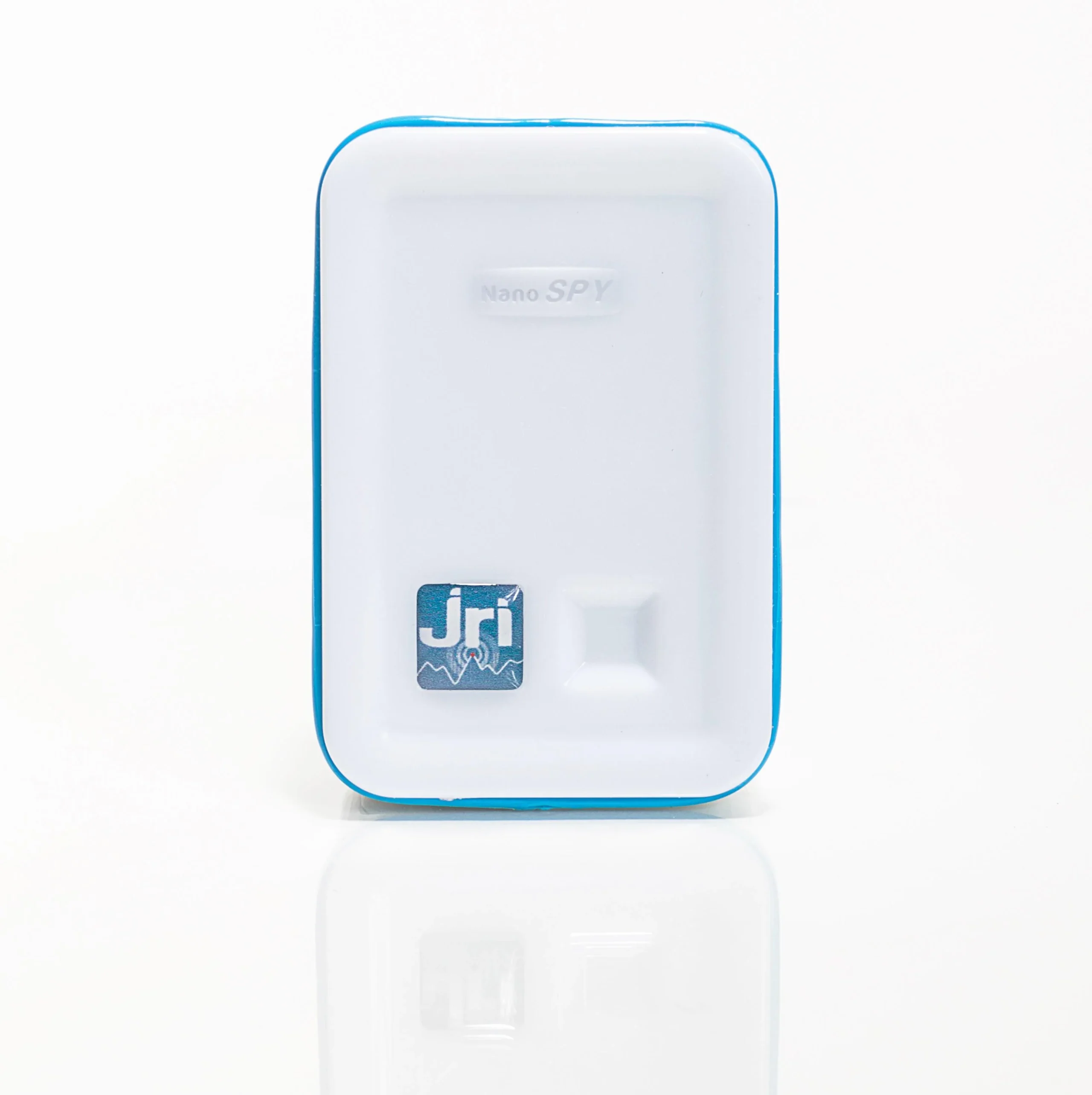

Nano SPY T1 Recorder
The Nano SPY T1 internal sensor measures, records temperature and transmits its data to a nearby Nano SPY Link module via 2.4 GHz radio frequency communication. The data is automatically sent to the JRI secure Cloud for hosting, and will be managed on the JRI MySirius web application. If thresholds are exceeded, alerts are transmitted in real time via alarm SMS/Text and email. The Nano SPY will also flash red when in alarm as well at the Nano SPY Link module. Small and robust, it is designed to monitor temperature directly from inside rooms, incubators, fridges and freezers.
Suitable for vaccine cold chain monitoring.
NOTE: To operate the device requires connection to Nano SPY LINK and My Sirius subscription.
| Interface | Status LED lights and On/Off touch sensitive button |
| Measurement range | -40°C to +85°C |
| Accuracy | ±0.4°C from -20°C to +40°C and ±0.5°C out of this range |
| Communication | 2.4 GHz (802.15.4) |
| Memory | 10,000 data points |
| Sensor | Internal PT100 |
| Operating conditions | -40°C to +85°C |
| Resolution | 0.01 |
| Measuring and transmission period | Adjustable from 5 sec to 12 hrs |
| Internal memory recording period | Adjustable from 5 sec to 24 hrs |
| Response time t90 | ~ 10 mn |
| Protection | IP68 |
| Case | Polycarbonate – Food contact |
| Power supply | Lithium 3,6v battery – Replacement |
| Battery life | 2 to 4 years depending on use |
| Dimensions and weight | 63 x 42 x 25 mm / ~ 60 g |
| Mounting | Fixing eyelets and integrated magnets |
| Supplied with | Battery, 3 identification rings pack : blue, green and grey |
| Compliance | CE, ROHS, FCC, ETS 300-328, EN 12830 |
| Standard calibration points | -18°C/ +6°C/ +22°C |
